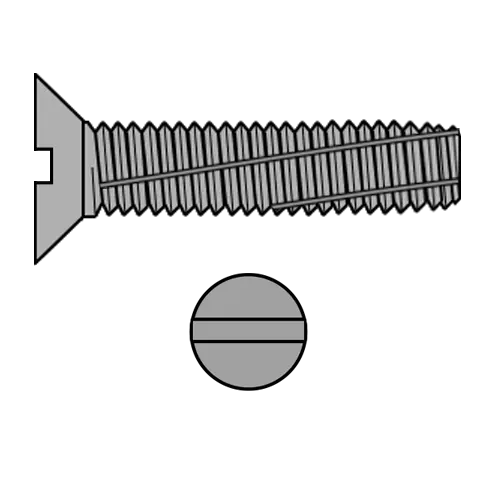

Flat Head Slotted Thread Cutting Screws 7513 F

Slotted Flat Head Thread Cutting Screws have a slotted head that is flat on top and tapered on the bottom. Slotted Flat Thread Cutting Screws can be driven with a flat blade screw driver. Metric Thread Cutting Screws are threaded fasteners with a machine screw thread that will cut its own thread as it is driven into an unthreaded pilot hole. Slotted Flat Head Thread Cutting Screws are intended to be used with countersunk holes leaving the top of the screw flush with the mating surface of the object it is fastening.

The dimensions of the head are per DIN 963 Slotted Flat Head Machine Screw.

Metric Thread Cutting Screws create chips from the material that they are cutting as they are driven into an unthreaded hole. Slotted Flat Head Thread Cutting Screws generally require less torque to install than thread forming screws and can be used in applications when the torque required for thread forming screws is undesirable. When installed correctly Metric Thread Cutting Screws create a tight fit with the mating part and normally do not require the use of a lock washer to prevent it from loosening.

Metric & Multistandard Components Corp. can supply DIN 7513F Slotted Flat Head Thread Cutting Screws in Zinc Plated Steel.
